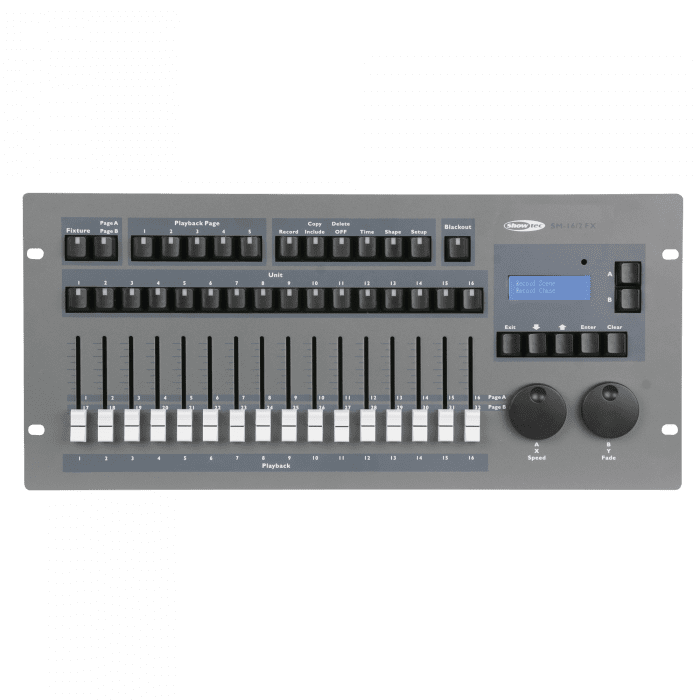

Showtec SM-16/2 FX

32-Channel Lighting Desk with Shape Engine

Intelligent light DMX controller Control 16 fixtures up to 32 channels each Patchable channels for each fixture Ready-to-use Shape Engine Show backup on USB The SM-16/FX has a small size but offers great functionality to any operator. It can control up to 16 fixtures which each can be up to 32 channels. 2 rotaries ensure precise positioning of your pan and tilt axis. Robust cherry-keys allow smooth and professional operation. The SM-16/2 FX can hold up to 80 chases with 100 steps each and 80 scenes. Moreover it contains a ready-to-use shape engine which makes it the most powerful controller in its league.

Mechanical Specifications

Length (mm) 483 mm Width (mm) 220 mm Height (mm) 75 mm

Weight 3.7 kg

Rack Units 5 U

IP Rating IP20 (indoor use only)

Housing Metal Colour Gray

Control Mode Auto,

DMX, Manual

DMX Channels 512

Patch mode Yes

Display LCD

Fixtures 16

Fixture Channels 32

Buttons 37

Chases 80

Encoder Wheels 2

Faders 16

Memories 80

Playback Faders 16

Playback Pages 5

Effects Engine Yes

Universes 1
