Doughty TV quick clamp 29mm receiver

Doughty TV Quick Clamp

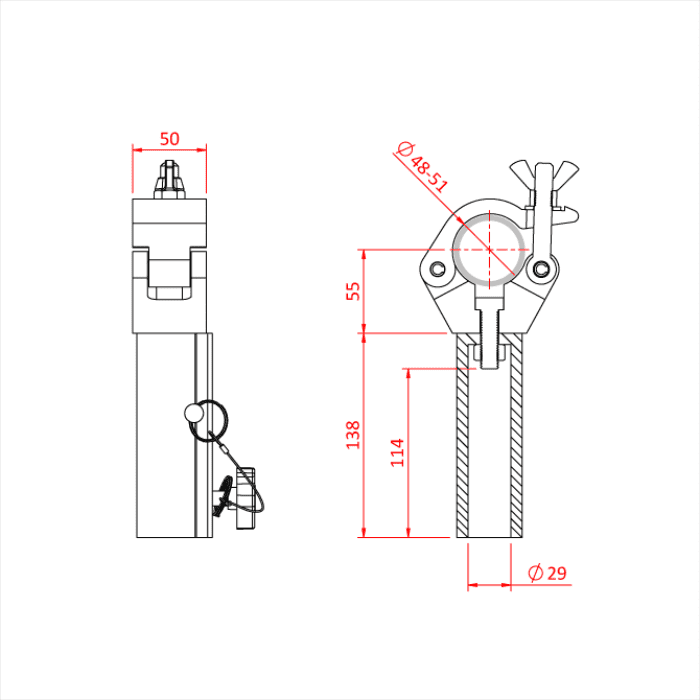

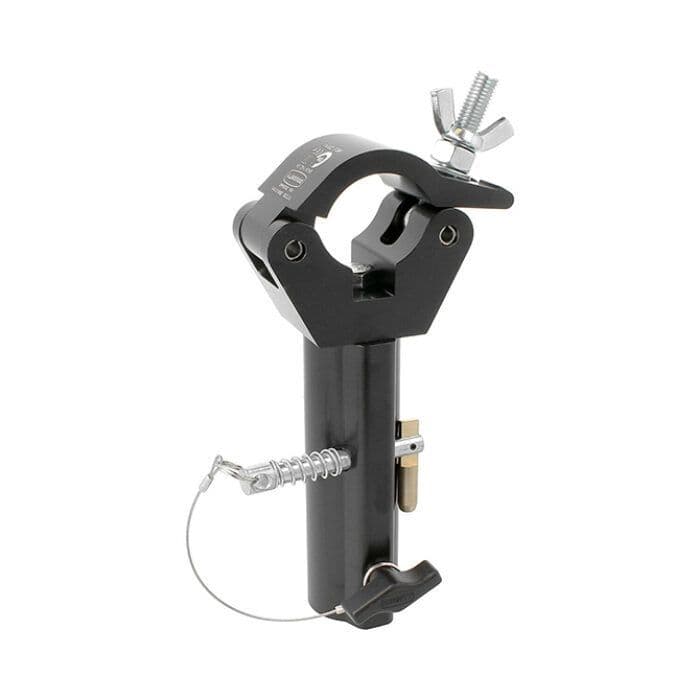

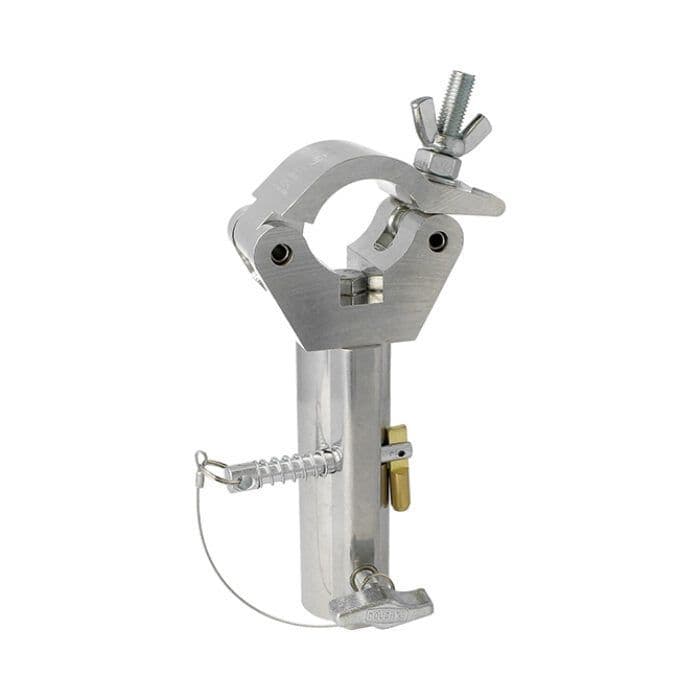

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm  diameter tubes and is 50mm (1.97″) wide, factory fitted with a 29mm (1.14″) Spigot receiver designed to accept a 28mm (1.10″) diameter spigot. Supplied with lynch pin for secondary locking allowing 360 degree rotation, this clamp is designed predominantly for use in the TV/Film industry and is often used with Drop Arms and Pantographs. Available in polished silver or powder coated black.

TÜV APPROVED

• PART NUMBERS
• Silver T57235
• Black T57236

• SPECIFICATION
• WLL:200Kg
• Tube Diameter:48mm – 51mm (1.89” – 2.01”)
• Clamp Width:50mm (1.97")
