Doughty swivel coupler

Doughty Swivel Coupler

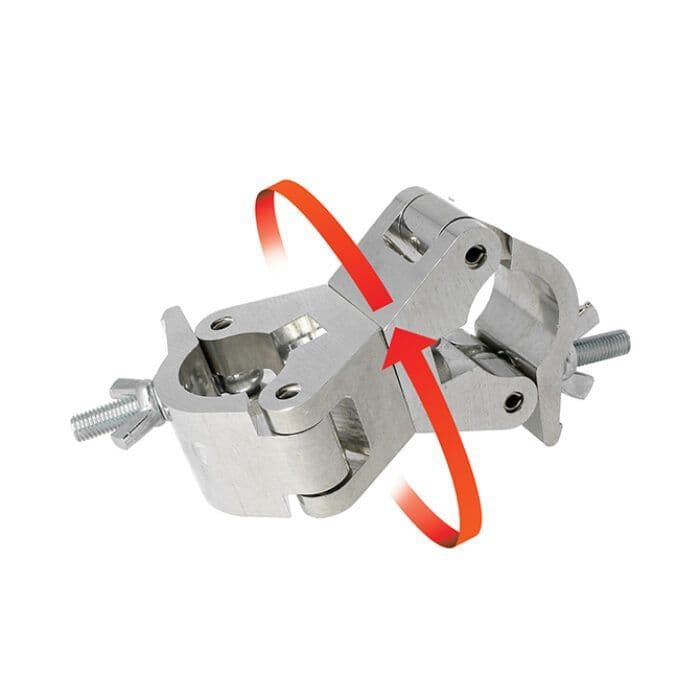

The industry standard swivel coupler, consists of a pair of high tensile extruded aluminium clamps back to back and designed to swivel 360 degrees, that are suitable for 48mm to 51mm (1.89” – 2.01”) diameter tubes. It has a WLL of 750Kg and uses a pair of 50mm (1.97″) wide clamps. Ideal for trussing as it will not damage the cords.

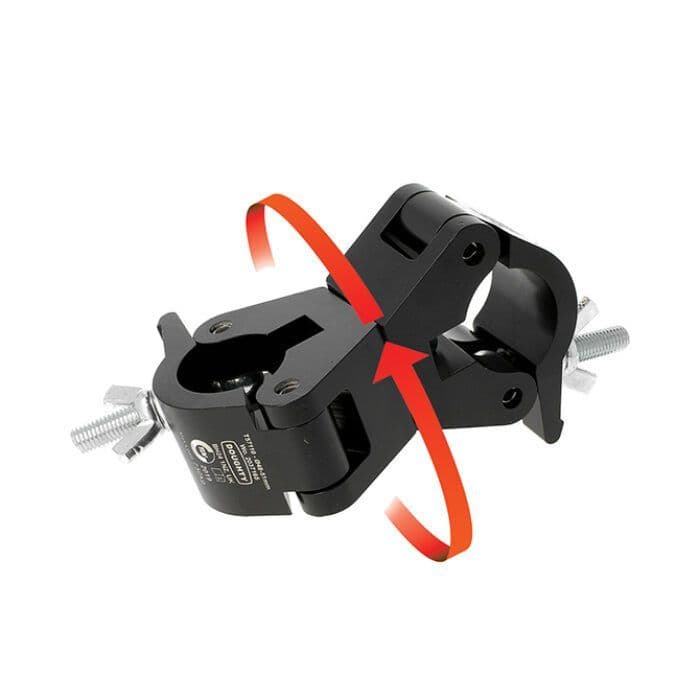

Available in polished silver or powder coated black.

TÜV APPROVED

• PART NUMBERS
• Silver T57100
• Black T57110

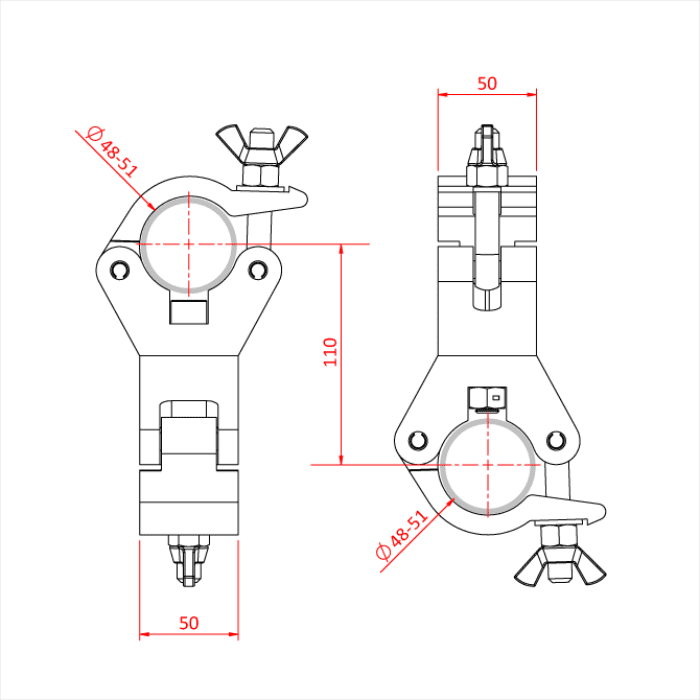

• SPECIFICATION
• WLL:750kg
• Tube Diameter:48mm – 51mm (1.89” – 2.01”)
• Clamp Width:50mm (1.97")
