Doughty 90 degree fixed coupler

Doughty 90° Fixed Coupler

The industry standard 90 degree fixed coupler, consists of a pair of high tensile extruded aluminium clamps back to back, locked at 90 degrees that are suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes. It has a WLL of 750Kg and uses a pair of 50mm (1.97″) wide clamps. Ideal for trussing as it will not damage the cords.

Available in polished silver or powder coated black.

TÜV APPROVED

• PART NUMBERS
• SilverT57102
• BlackT57112

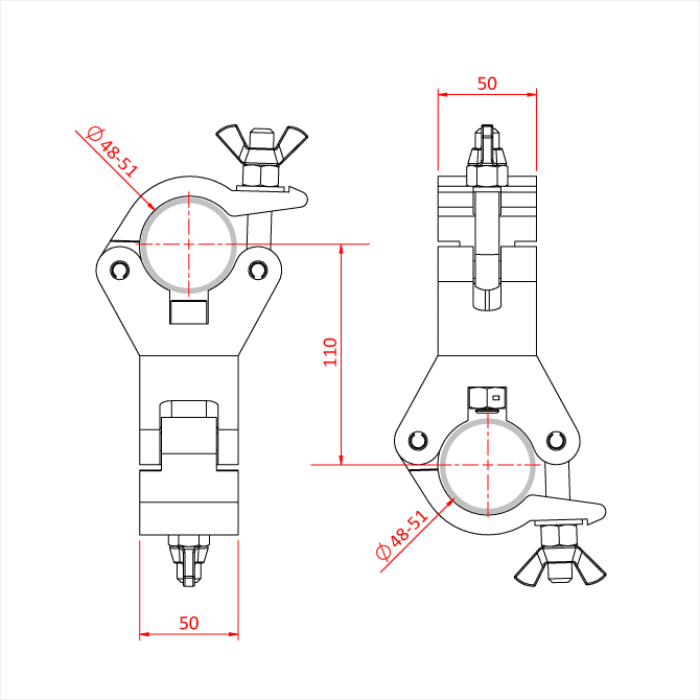

• SPECIFICATION
• WLL:750kg
• Tube Diameter:48mm – 51mm (1.89” – 2.01”)
• Clamp Width:50mm (1.97")
