Doughty - Boom Arm

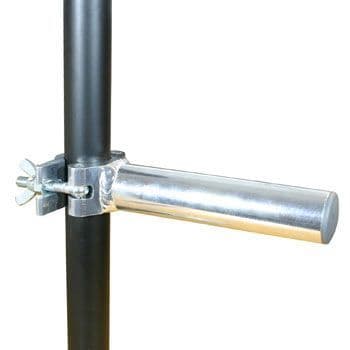

Aluminium Boom Arms-Silver

A range of aluminium Boom Arms available in four sizes. They consist of a length of 48mm aluminium tube welded to a low profile high tensile extruded aluminium half coupler suitable for 48mm to 51mm diameter tube. Ideal for outrigging lanterns from vertical truss or tube. Available in polished Silver or powder coated Black.

Custom sizes are available to special order.

TÜV APPROVED

• PART NUMBERS
• 250mm-100K T57310
• 500mm-50Kg T57315
• 750mm-37Kg T57317
• 1000mm-25Kg T57320

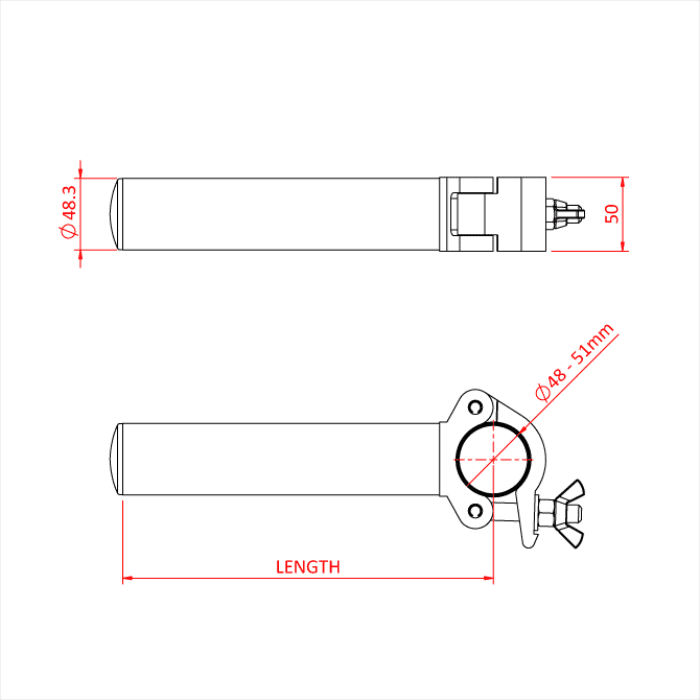

• SPECIFICATION
• Tube Diameter:
  • 48mm – 51mm (1.89” – 2.01”)
• Finish:
  • Silver
• Clamp Width:
  • 50mm (1.97")
