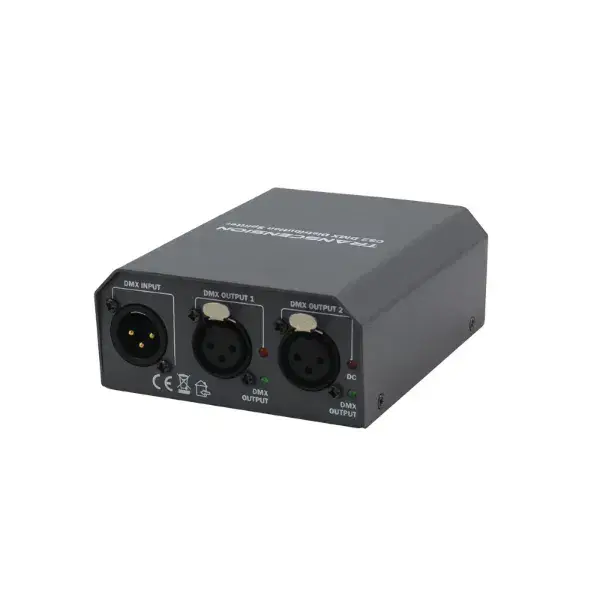

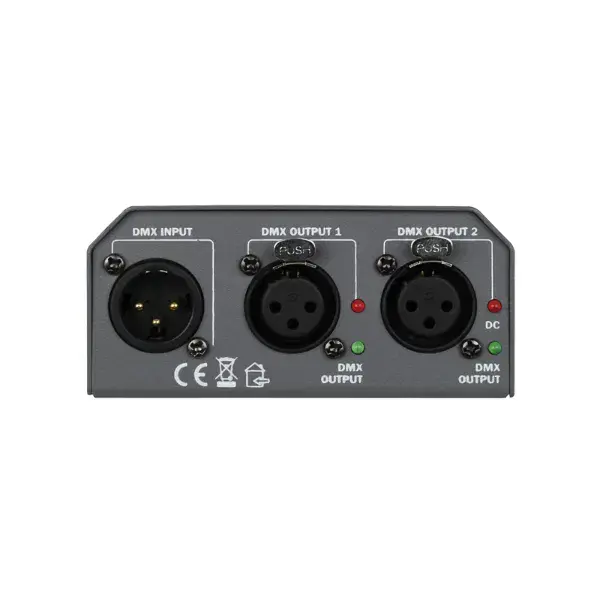

CS2 DMX Distribution Splitter

A combination 2-way DMX distribution splitter featuring 1 input and 2 outputs plus IEC power input and IEC power output. Both DMX input and DMX outputs are equipped with 3-Pin XLR connectors, each DMX output has an independent driver

Features

• 2-way DMX distributor with 1 input and 2 outputs
• 3-Pin XLR input
• 3-Pin XLR output per channel
• Each DMX output features an independent driver
• 100% electrical isolation between all inputs/outputs
• IEC power input with IEC power output
• Rugged steel chassis

• Power supply: 240V, 50Hz
• Fuse: F500mA 250V
• Dimensions (H x W x D): 50 x 150 x 105mm
• Weight: 0.7kg
