Lens not included

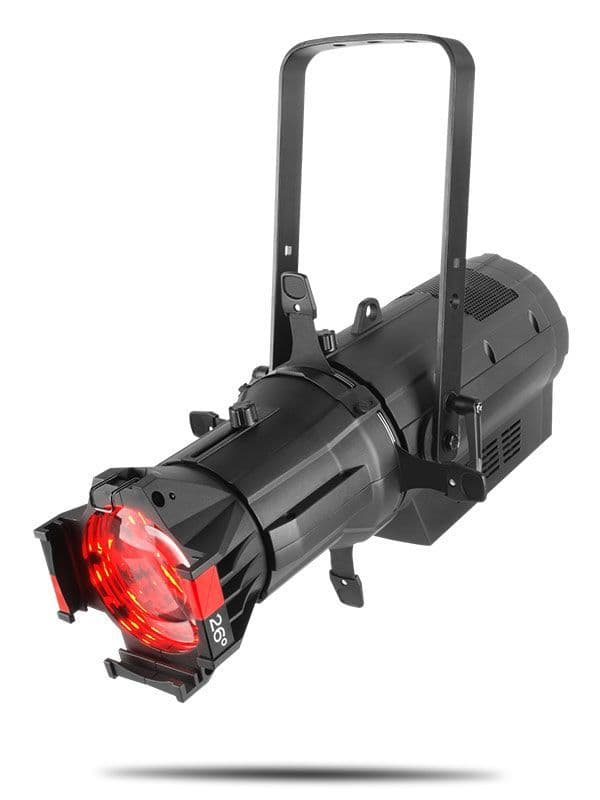

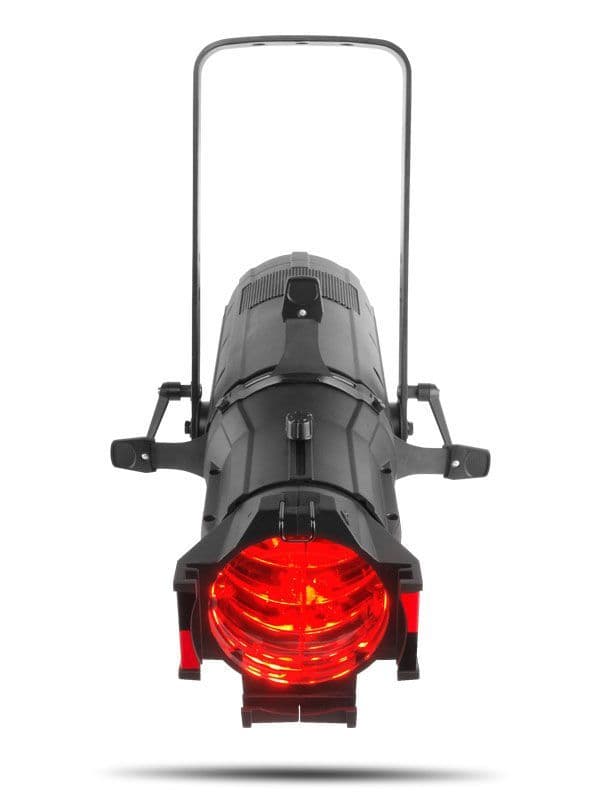

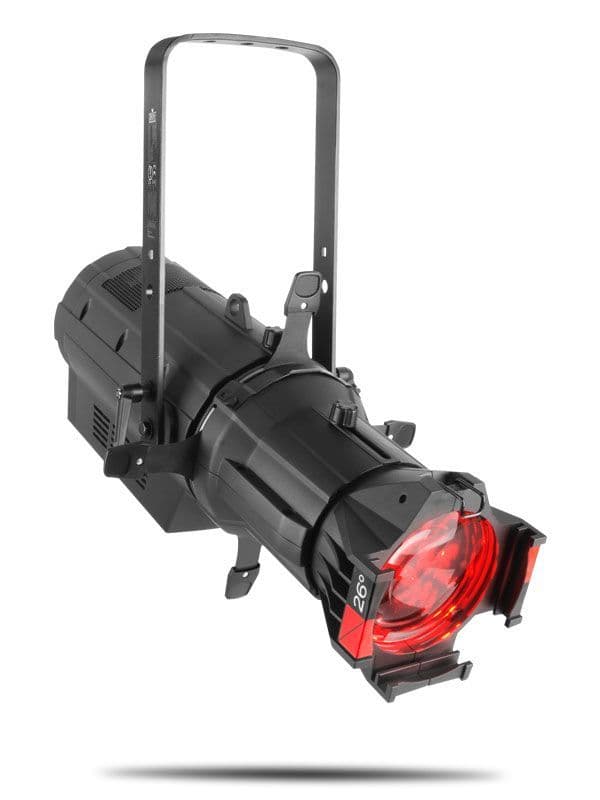

Ovation E-910FC is a high-performance ERS-style fixture with full RGBA-Lime color mixing and Colour Temperature presets of 2800 to 6500 K that match the output of a tungsten source to perfection. Control options include full 16-bit dimming (per colour and master), selectable PWM, RDM and onboard dimming curve selection. Also accessible is our Virtual Colour Wheel which matches popular gel colours

OPTICAL

• Light Source: 91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (722 mA), 6031 K, 50,000 hours life expectancy (L70)
• Colour Temperature (range): 2800 to 6500 K
• Colour Temperature (at full): 6031 K
• CRI (3200 K): 86
• Beam Angle (w/5° lens): 7°
• Beam Angle (w/10° lens): 10°
• Beam Angle (w/14° lens): 11°
• Beam Angle (w/19° lens): 19°
• Beam Angle (w/26° lens): 24°
• Beam Angle (w/36° lens): 28°
• Beam Angle (w/50° lens): 41°
• Beam Angle (w/15°–30° lens)(Narrow): 13°
• Beam Angle (w/15°–30° lens)(Wide): 24°
• Beam Angle (w/25°–50° lens)(Narrow): 23°
• Beam Angle (w/25°–50° lens)(Wide): 36°
• Field Angle (w/5° lens): 7°
• Field Angle (w/10° lens): 10°
• Field Angle (w/14° lens): 14°
• Field Angle (w/19° lens):19°
• Field Angle (w/26° lens): 26°
• Field Angle (w/36° lens): 34°
• Field Angle (w/50° lens): 51°
• Field Angle (w/15°–30° lens)(Narrow): 15°
• Field Angle (w/15°–30° lens)(Wide): 29°
• Field Angle (w/25°–50° lens)(Narrow): 26°
• Field Angle (w/25°–50° lens)(Wide): 50°
• Lumens (w/5° lens): 1,807
• Lumens (w/10° lens): 3,961
• Lumens (w/14° lens): 2,827
• Lumens (w/19° lens): 3,236
• Lumens (w/26° lens): 4,316
• Lumens (w/36° lens): 3,918
• Lumens (w/50° lens): 3,813
• Lumens (w/15°–30° lens)(Narrow): 4,028
• Lumens (w/15°–30° lens)(Wide): 1,553
• Lumens (w/25°–50° lens)(Narrow): 5,261
• Lumens (w/25°–50° lens)(Wide): 7,263
• Illuminance (w/5° lens): 16,300 lux @ 5 m
• Illuminance (w/10° lens): 7,430 lux @ 5 m
• Illuminance (w/14° lens): 4,420 lux @ 5 m
• Illuminance (w/19° lens): 2,530 lux @ 5 m
• Illuminance (w/26° lens): 1,720 lux @ 5 m
• Illuminance (w/36° lens): 1,020 lux @ 5 m
• Illuminance (w/50° lens): 457 lux @ 5 m
• Illuminance (w/15°–30° lens)(Narrow): 4,260 lux @ 5 m
• Illuminance (w/15°–30° lens)(Wide): 1,620 lux @ 5 m
• Illuminance (w/25°–50° lens)(Narrow): 1,790 lux @ 5 m
• Illuminance (w/25°–50° lens)(Wide): 825 lux @ 5 m
• Barrel Rotation: +/- 27°
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Manual
• Strobe Rate: 0 to 28 Hz
• Standalone Color Mixing: Yes
• Colour Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
• Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
• Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
• Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
• Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
• Weight (fixture only): 15.4 lb (7.1 kg)
• Weight (w/14° lens): 20.8 lb (9.43 kg)
• Weight (w/26° lens): 19.8 lb (9 kg)
• Weight (w/15°–30° lens): 29.4 lb (13.3 kg)
• Weight (w/25°–50° lens): 27 lb (12.2 kg)
• Exterior Color: Black or White
• Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
• Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
• Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
• Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
• Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
• Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
• Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
• Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

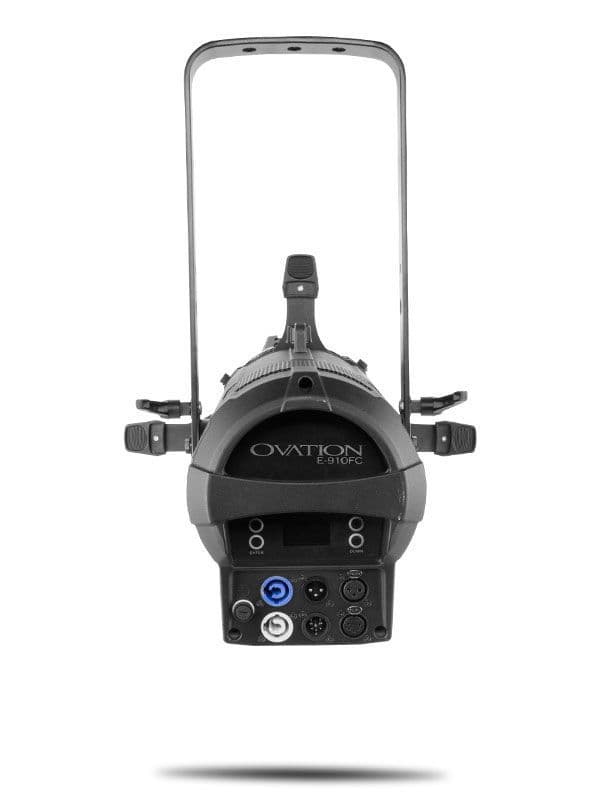

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB

CONTROL

• Protocol(s): DMX, RDM
• DMX Channels: 1, 3, 5, 7, 10, 12, 13, 16 or HSV
• Modes/Personalities: 8 personalities (1, 3, 5, 7, 10, 12, 13, 16 or HSV)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 6 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
• Power and Current: 220 W, 2.171 A @ 100 V, 60 Hz
• Power and Current: 215 W, 1.786 A @ 120 V, 60 Hz
• Power and Current: 214 W, 1.032 A @ 208 V, 60 Hz
• Power and Current: 216 W, 0.935 A @ 230 V, 50 Hz
• Power and Current: 217 W, 0.904 A @ 240 V, 60 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC
• IP Rating: IP20, dry location

WHAT'S INCLUDED

• OVATION E-910FC
• Neutrik powerCON power cord

REQUIRED ACCESSORIES

• Lens Tube: 19°, 26°, 36°, 50°

• Color Blending Filters
• Ovation Zoom Lenses,
• Gobo Holder: Standard “S4” size Sandwich Style or Iris Slot Style gobo holder for “A” or “B” size gobos
