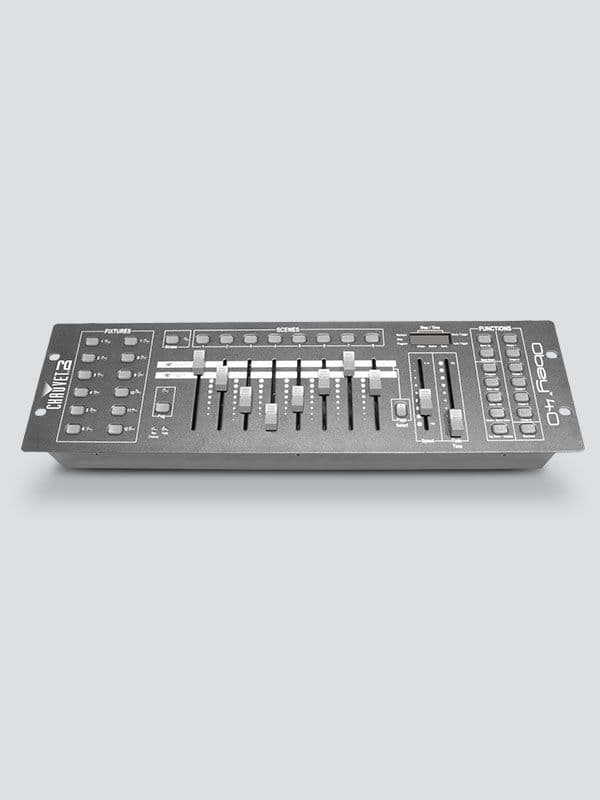

Chauvet DJ Obey 40

HIGHLIGHTS SPECIFICATIONS

Highlights Universal DMX controller capable of handling all the complexities of today's lighting fixtures Easily control up to 12 intelligent lights with up to 16 channels each Includes 192 channels of DMX control and 30 banks of 8 scenes for a maximum of 240 scenes Enhance light shows with 6 sets of chase effects containing 240 scenes Increase effects with fog and strobe control, beat activation, tap-sync and auto run Capability to grab any fixture on the fly and sequentially link chases Increase flexibility with MIDI compatibility and DMX polarity selector

Conveniently mounts using the 3-space (3U) mounting rack Specifications

DMX Channels:192 DMX

Connectors:3-pin XLR Rackmount: 3U

Input Voltage:9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)

Weight:5.7 lb (2.6 kg)

Size:19 x 3.5 x 6.7 in (483 x 89 x 171 mm)

Approvals:CE

WHAT'S INCLUDED

External power supply

Quick Reference Guide

Warranty card
