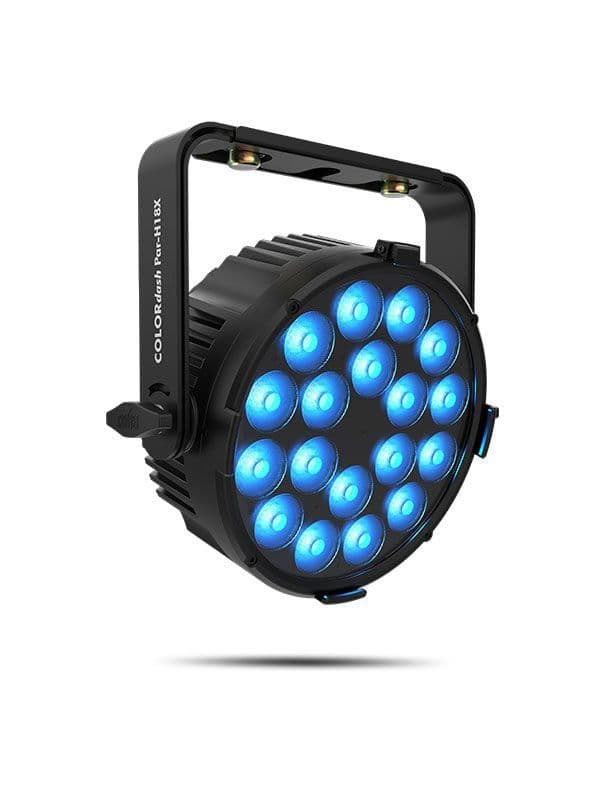

Chauvet COLORdash PAR H18X

NEW COLORdash PAR H18X

The powerful COLORdash PAR H18X RGBWAUV LED wash efficiently delivers a broad palette of subtle to saturated color with beautiful precision and over 5,700 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H18X is a die-cast workhorse that withstands the rigors of real world use while offering convenient operation and excellent performance, in the rig or on the floor, live or on camera.

AT A GLANCE

Rugged RGBWA-UV LED wash for events Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera RDM (Remote Device Management) for added flexibility Selectable, smooth dimming curves for eliminate flicker and choppiness in fades Easy to read OLED display with password protection and touchscreen interface Advanced optics provide exceptional color mixing and high efficiency Double-bracketed yoke with omega bracket doubles as floor stand

SPECIFICATIONS

OPTICAL Light Source: 18 LEDs (HEX-color RGBWAUV) 150 W, (550 mA), 50,000 hours life expectancy

.Color Temperature (range): 2800 to 10,000KColor Temperature (at full): 9507K

Beam Angle: 23.6°Field Angle: 38.6°Lumens: 5,736 Illuminance: 1,207 lux @ 5 mSelectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

Dimmer: Electronic Shutter/Strobe: Electronic Strobe Rate: 0 to 20 HzStandalone

Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 4Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

Dimensions: 12.45 x 4.38 x 8.68 in (316.4 x 111.5 x 220.7 mm)Weight: 10.4 lb (4.7 kg)Exterior Color: Black Housing Material: Aluminum die-cast Accessory Holder/Gel Frame Size: 9.25 in (235 mm) CONNECTIONS Power Connection: Edison (local) plug to Seetronic Powerkon IP65Power Input: Seetronic Powerkon IP65 Power Output: Seetronic Powerkon IP65Data Connectors: 3- and 5-pin XLRCable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: DMX, RDMDMX Channels: 6, 8, 9, 13 or 14Modes/

Personalities: 3 personalities (6ch, 8ch, 9ch, 13ch, 14ch)

ELECTRICAL Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 9 units @ 120 V; 15 units @ 208 V; 17 units @ 230 V

Power and Current: 155 W, 1.305 A @ 120 V, 60 HzPower and Current: 153 W, 0.773 A @ 208 V, 60 HzPower and Current: 152 W, 0.704 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

CE, MET, FCC, UKCAIP Rating: IP20, dry locationTemperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

COLORdash PAR H18X

Seetronic Powerkon IP65 power cord

Gel frame holder

Omega bracket

Quick Reference Guide or User Manual

OPTIONAL ACCESSORIES

Professional Clamps: CTC-50HC,

CTC-50HCNNeutrik® powerCON® cables

3- or 5-pin DMX CablesBarndoor
