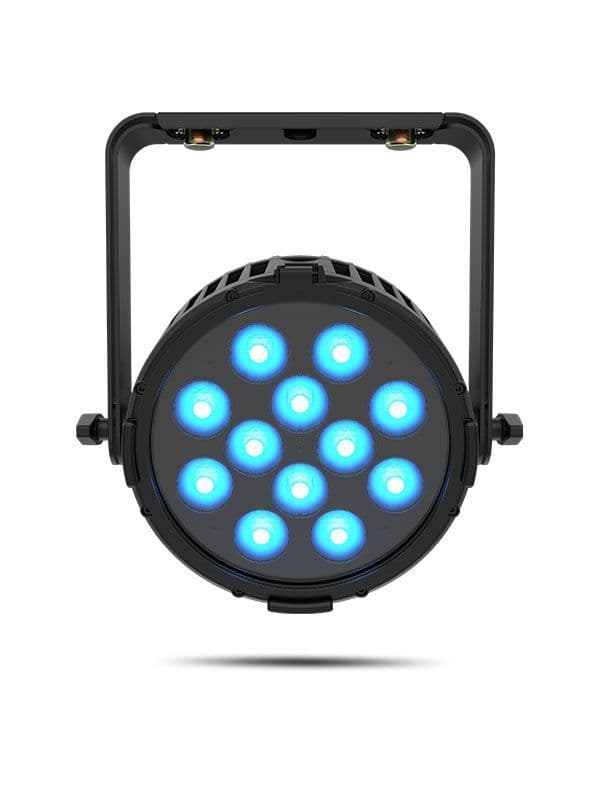

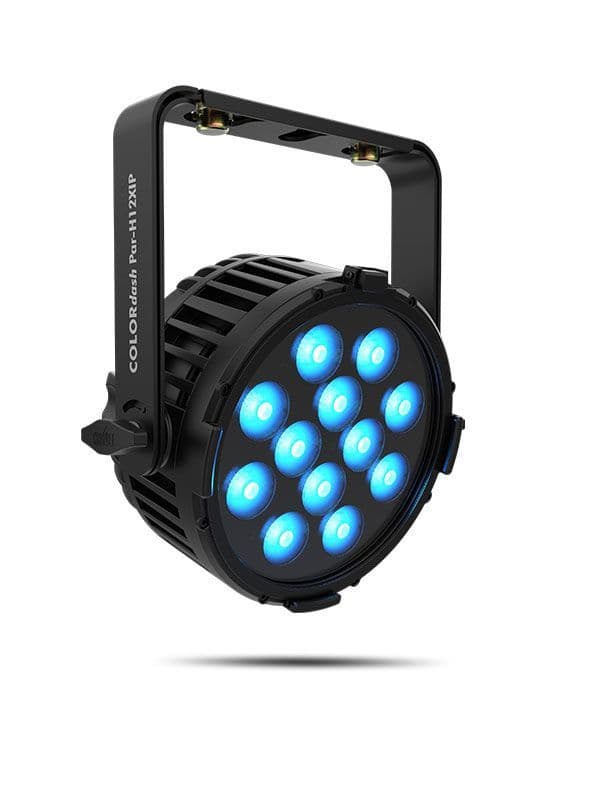

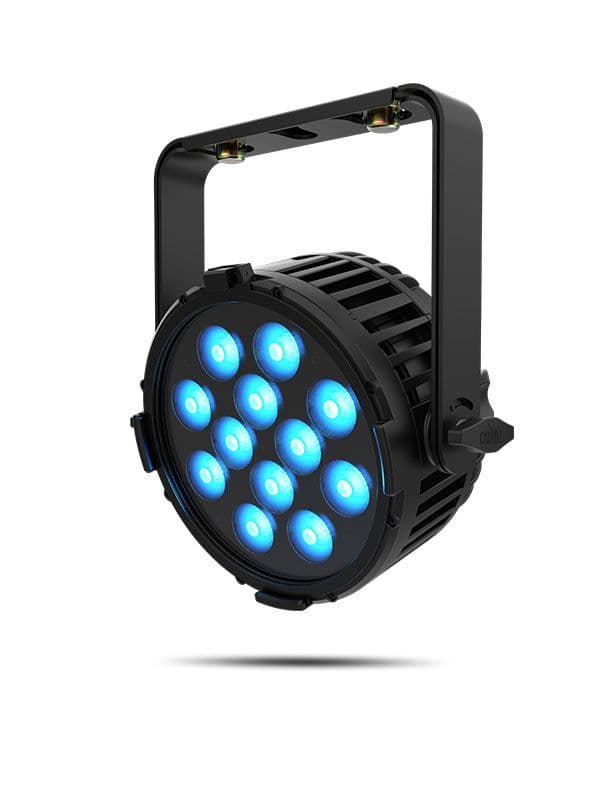

Chauvet COLORdash PAR H12X IP

NEW COLORdash PAR H12X IP

The rugged COLORdash PAR H12X IP RGBWAUV LED wash efficiently delivers a broad palette of subtle to saturated color with beautiful precision, weighing in under 12 lbs while delivering over 4,500 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H12X IP offers convenient operation and excellent performance as an IP65-rated all-weather die-cast workhorse at home in any environment, in the rig or on the floor, live or on camera, indoor or out.

SPECIFICATIONS OPTICAL

Light Source: 12 LEDs (hex-color RGBAW+UV) 120 W, (512 mA), 50,000 hours life expectancyColor Temperature (range): 2800 to 10,000 KColor Temperature (at full): 11,008 KBeam Angle: 22.2°Field Angle: 36.9°Lumens: 4,532Illuminance (total): 1,052 lux @ 5 mSelectable PWM: 600, 1.2k, 2k, 4k, 6k, 25k Hz DYNAMIC EFFECTS

Dimmer: ElectronicShutter/Strobe: ElectronicStrobe Rate: 0 to 20 HzStandalone

Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 4Built-in

Automated Programs: Yes

Dimensions: 9.1 x 12 x 9.8 in (232 x 305.4 x 247.9 mm)

Weight: 11.8 lbs (5.4 kg)

Exterior Color: BlackHousing

Material: Aluminum alloy, Aluminum die-cast

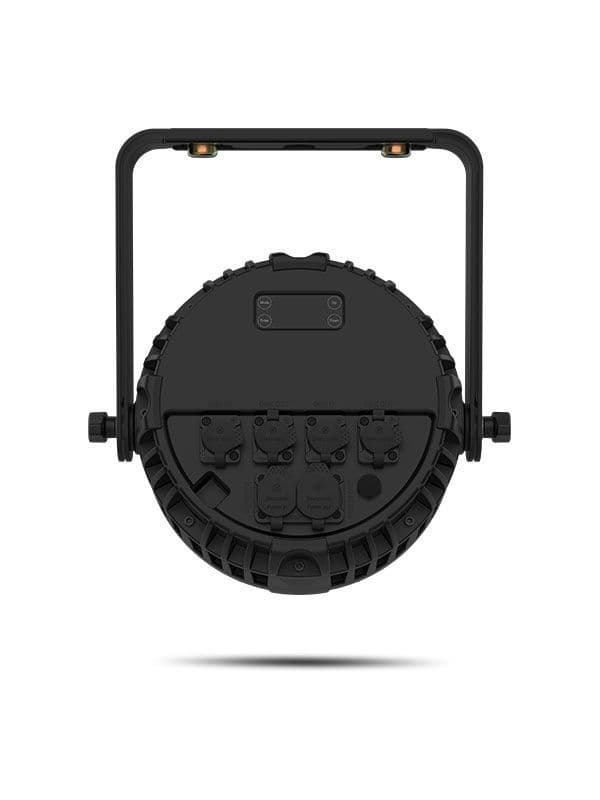

CONNECTORS

Data Connectors: 3 and 5-pin IP65 XLRCable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: DMX, RDMDMX

Channels: 6ch ,8ch ,9ch ,13ch, or 14chModes/Personalities: 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch) ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 11 units @ 120 V; 19 units @ 208 V; 21 units @ 230 VPower and Current: 126 W, 1.041 A @ 120 V, 60 HzPower and Current: 123 W, 0.604 A @ 208 V, 60 HzPower and Current: 123 W, 0.547 A @ 230 V, 50 Hz CERTIFICATIONS / QUALIFICATIONS CE, MET, FCC, UKCAIP Rating:

IP65, temporary outdoor/wet useTemperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

Colordash Par H12XIP

Seetronic powercon IP65 power cord

Gel frame holder (8.75 in/222 mm accessories)

Omega bracket

OPTIONAL ACCESSORIES

Professional Clamps: CTC-50HC, CTC-50HCN

Seetronic Powercon power linking cables

5-pin IP or Non-IP DMX Cables

AT A GLANCE

Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed At home in any weather conditions with IP rated power and DMX connections Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera RDM (Remote Device Management) for added flexibility Selectable, smooth dimming curves for eliminate flicker and choppiness in fades Easy to read OLED display with password protection and touchscreen interface Advanced optics provide exceptional color mixing and high efficiency Double-bracketed yoke with omega bracket doubles as floor stand
